Exposed Hinge Torsion Spring Assist - Code: SEHS
Overview

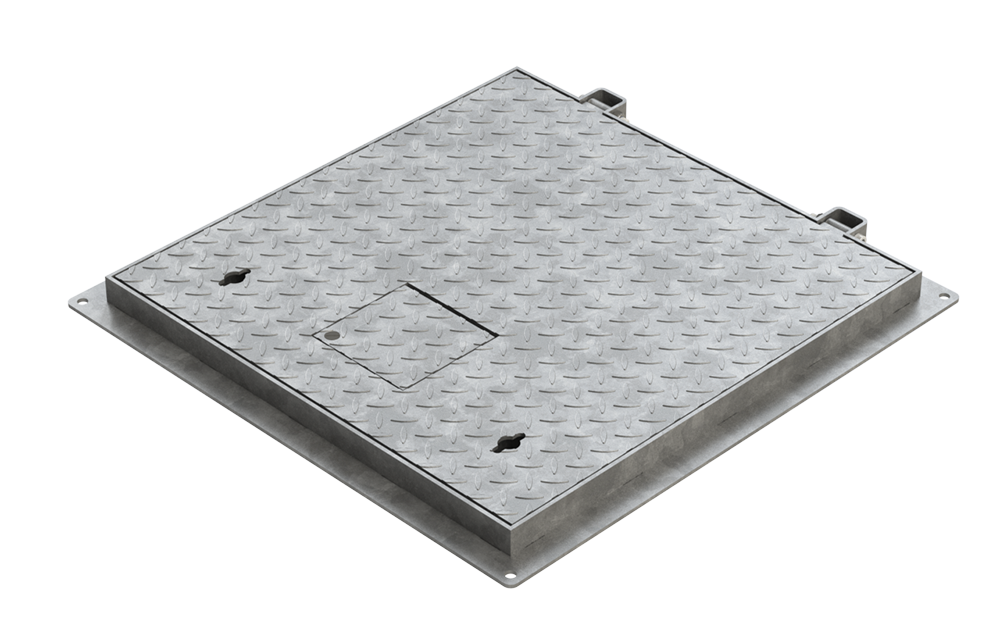

R&B’s range of External hinge torsion spring assist covers are bespoke manufactured to suit customer requirements and are fitted with a deep metal channel and neoprene seal as standard. The covers are designed for use in slow moving areas were regular access or single person access is required.
Frame Sizes & Spec
- o/a Top of Frame = c/o + 100mm on None
Hinged Width. Recommended Rebate W-
200mm D-140mm. - o/a Top of Frame = c/o + 115 on hinged width.
- Recommended Rebate W-120mm D-100mm.
- 50mm Build in Lugs on Longest Sides.
- 110mm o/a Frame Depth.
Features

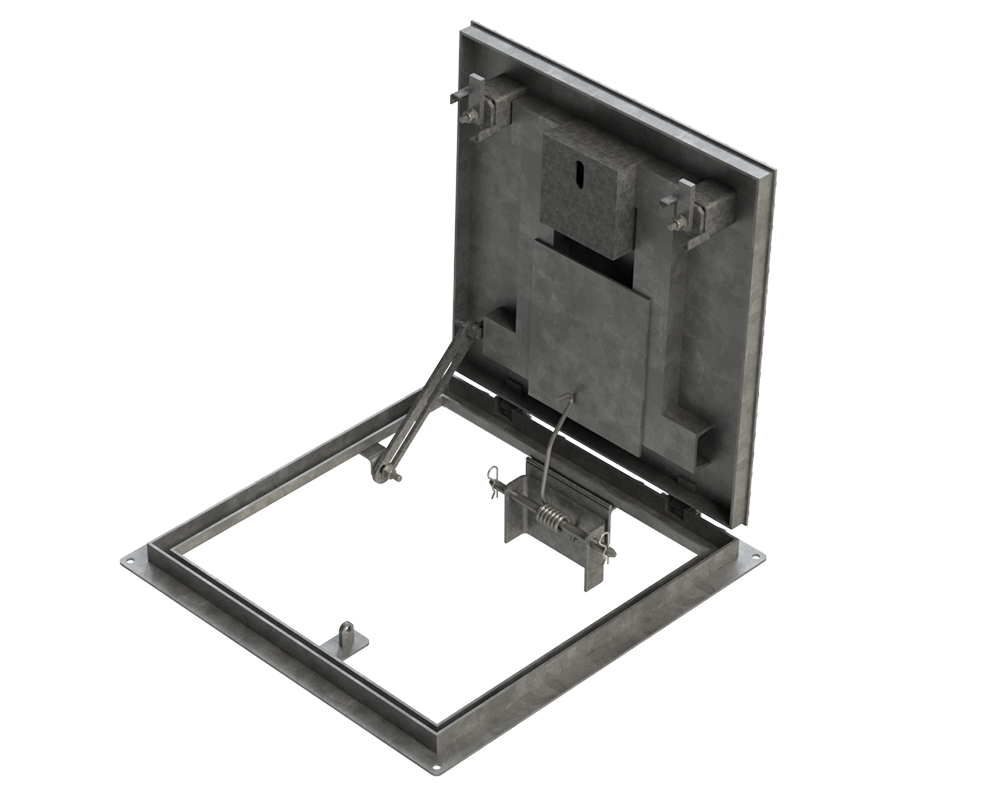

- Externally Hinged.
- Deep Metal Barrier Seal with Neoprene Under
- Lid (Gas and Airtight Seal to Atmospheric Pressure).
- Torsion Spring (Stainless Steel) Assisted Lift for One Person Safe Operation.
- Secure Turnbuckle Locking.BS Lifting Points.
- Loadings Available – FACTA AA (5tonneGLVW), AAA (10tonne), B (25tonne), D(44tonne)
- Galvanising certified to BS EN ISO 1461.
Bespoke Options
- Additional Security Locking (TorxPin Screws).
- Full Stainless Steel Grades 304
- Recessed Padlock Facility c/w Hinged Lid
- Frame Drainage Tubes
- Frame Lifting Points.
- Demountable Safety Barrier System.
- Fall Protection Safety Grid (Various Options Available).
